EQUIPMENT FLEET
We have reliable subcontractors for the areas of laser cutting, water-jet cutting, deep drilling, and thread grinding.
We also repair and overhaul machines.
Saws
| Number | Machine type | Details (dimensions in mm) |
| 2 | power hacksaws | up to 260 dm |
| 2 | circular saws | up to 100 dm |

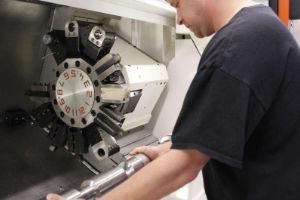

CNC Turning
| Number | Machine type | Details (dimensions in mm) |
| 4 | CNC lathes | up to 320 diameter up to 1,500 in length |
| 1 | CNC lathes | up to 500 diameter up to 1,500 in length |
Turning, conventionally
| Machine type | Details (dimensions in mm) |
| Various machines | up to 800 diameter up to 1,500 in length |
CNC Milling
| Number | Machine type | Details (dimensions in mm) |
| 2 | CNC milling cutter with rotary attachment | x = 500, y = 500, z = 400 |
| 3 | milling cutters, four-axis | x = 500, y = 500, z = 400 |
Milling, conventionally
| Number | Machine type | Details (dimensions in mm) |
| 2 | Milling machines | x = 500, y = 400, z = 400 |
Deep hole drilling
| Number | Machine type | Details (dimensions in mm) |
| 1 | Deep hole drilling machine | 4.0 up to 36.0 diameter up to 1,000 in length – center |
Boring and drilling, conventionally
| Machine type | Details (dimensions in mm) |
| Various machines | 0.5 up to 50.0 diameter Table max.: x = 400, y = 400, z = 800 |
Honing
| Number | Machine type | Details (dimensions in mm) |
| 1 | honing machine | drill-hole up to 98 diameter up to 300 in length |
Surface grinding
| Number | Machine type | Details (dimensions in mm) |
| 4 | universal grinding machines | from x = 200, y = 500, z = 260 up to x = 800, y = 500, z = 350 |
| 1 | Diaform grindern | von x = 200, y = 500, z = 260 |
External cylindrical grinding
| Number | Machine type | Details (dimensions in mm) |
| 7 | universal grinding machines | up to 450 clamping diameter up to 1,500 in length |
Internal cylindrical grinding
| Number | Machine type | Details (dimensions in mm) |
| 1 | universal grinding machines | drill-hole from 0.8 up to 4.0 diameter up to 60 length Spindle revolutions 120,000 rpm |
| 3 | universal grinding machines | drill-hole from 2.5 up to 350 diameter up to 500 Länge Workpiece length: 1.000 |
Electric discharge machining
| Number | Machine type | Details (dimensions in mm) |
| 1 | wire eroder | x = 350, Y = 250, z = 300 |
| 1 | penetration eroder | x = 400, Y = 250, z = 400 |
Broaching
| Number | Details (dimensions in mm) |
| 1 | up to a working width of 14 mm broaching length of max. 120 mm |
Hardening
| from our partners: |
| Eiferle |
| Hot |
| Bodycoat |
| Fritz Düsseldorf |
| etc. |
Surface treatment
| from our partners following coatings are carried out: |
| TIN-Beschichten |
| Brünieren |
| TICN |
| versilbern |
| vergolden |
| Keramikbeschichtungen |
| etc. |
Labelling
| Engraving |
| Etching |
| Laser labelling |
Materials to be cut
| Constructional steels, tempering steels, case hardening steels, tool steels, high-speed tool steels (HSS), stainless, acid-proof, and heat-resistant steels for the beverage and food industries |
| Nonferrous metals (aluminum, copper, bronze, red brass, Ampcoloy, nickel silver, and tombac) |
| Cast iron (grey iron, ductile iron, castings for hydraulic systems, etc.) |
| Plastics (Delrin, nylon, PVC, cotton fabric laminate, etc.) |
| Power metals (hard metal, Widia, Ferro, -Tix, molybdenum, etc.) |
| Powder-metallurgic steels (ASP, Vanadis, Elmax, etc.) |
